Taurus Super-S LCM

When it comes to raw power there is nothing to beat the dual-bay Taurus. This multi-bay hard drive enclosure is built strong and rugged, offering more than enough capacity to store all your digital media files. Not only that, the Taurus can also back up and secure all of your data thanks to RAID protection. Great performance, great protection and great looks - only in the Taurus.

• Configurable hardware RAID controller (RAID 1 mirroring and RAID 0 striping)
• LCD display for easy device configuration and access to detailed information about the drives
• Critical parameters such as HDD temperature and fan speed can be monitored easily with help of the LCD display
• Utilizes Self-Monitoring, Analysis and Reporting Technology also known as S.M.A.R.T. to obtain data directly from the HDD
• Versatile interface, including eSATA, FireWire 400, FireWire 800 and USB 2.0
• Hardware acceleration of RAID rebuild
• 2TB volume option for systems that do not support large volumes
• Perforated aluminum casing and extra large fan for excellent heat dissipation
• Smart Fan (automatically regulates fan speed according to the internal temperature)

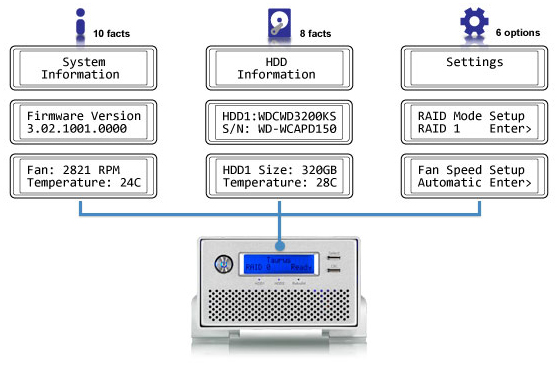

The Taurus Super-S LCM comes equipped with a LCD display for easy device configuration, event messages and access to detailed information about the external hard drives. Critical parameters such as HDD temperature and fan speed can be monitored easily with the help of the LCD display. It utilizes Self-Monitoring, Analysis and Reporting Technology also known as S.M.A.R.T. to obtain data directly from the HDD. Altogether, it can display 10 different details about the system plus 4 more per HDD and allow the user to modify up to 6 different settings, making this a highly configurable hard drive enclosure.

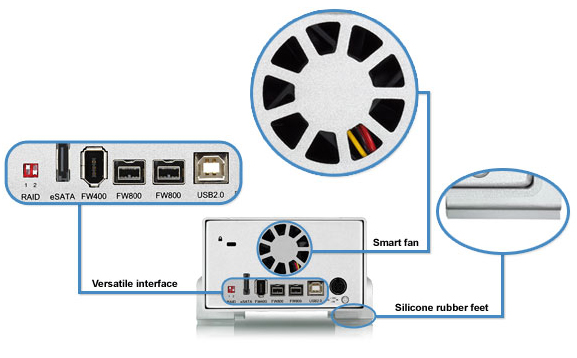

The Taurus comes with an extremely versatile interface, featuring eSATA, FireWire 400, FireWire 800 and USB 2.0 High Speed. To increase performance and data throughput, "RAID 0 - Striping" offers the ideal choice for your daily backup and other data transfers. For important data and reliability, you can't beat the "RAID 1 - Mirroring" function, which will automatically create a copy of all the data in case one of the drives fails. To keep your drives cool, the Taurus is using a smart fan, which automatically regulates fan speed according to the internal temperature, yet still offers the option to be set at a fixed speed depending on your requirements.

Part No.	PDD-MSABU2OS-AKT
Case material	High quality aluminum for optimized heat dissipation
Application	‧Two 3.5" SATA-I, SATA-II or SATA-III hard drives ‧Capacity 80GB - 3TB per HDD ‧Two hard drives of identical capacity are recommended ‧Supports large volumes in excess of 2TB
RAID mode	‧RAID 0 striping ‧RAID 1 mirroring
Interface/Ports	‧1x eSATA port ‧2x 9-pin FireWire 800 ports ‧1x 6-pin FireWire 400 port ‧1x USB 2.0 High Speed port
Data transfer	‧eSATA up to 3Gbps (300MB/s) ‧FireWire 800 (1394b) up to 800Mbps (100MB/s) ‧FireWire 400 (1394a) up to 400Mbps (50MB/s) ‧USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)	‧eSATA: Windows XP/Vista/7 ‧FireWire 400/800: Windows XP/Vista/7 ‧USB 2.0: Windows XP/Vista/7 ‧Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card) ‧eSATA Plug and Play support required for host card driver
System requirements (Mac)	‧eSATA: Mac OS 10.4 or above ‧FireWire 400/800: Mac OS 10.2 or above ‧USB 2.0: Mac OS 10.2 or above ‧Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card) ‧eSATA Plug and Play support required for host card driver
System environment	‧Operating Temperature: 5°C ~ 40°C ‧Operating Humidity: 20%RH ~ 80%RH ‧Storage Temperature: -20°C ~ 70°C ‧Storage Humidity: 10%RH ~ 90%RH
Power supply	‧External power supply (UL, cUL, CE, TUV approved) ‧Input: AC 100-240V ‧Output: DC +5V/4.2A, +12V/3A
Dimensions
High (mm)	83
Long (mm)	245
Wide (mm)	140
